ELBD30HP-INV+
Motor power (kw):
22
Motor power (hp):
30
Working pressure (bar):
7-10
Working Pressure (psi):
100-145
Max capacity FAD (l/min):
4200
Min capacity FAD (l/min):
720
Max capacity FAD (scfm):
147
Min capacity FAD (scfm):
25
Weight (Kg/lbs):
490 / 1080
Compressed air connections (Inch):
1"
Dimensions LxWxH (mm):
1420x920x1342
Dimensions LxWxH (Inch):
55.91x36.22x52.8
Power supply V/Ph/Hz:
380-480/3/50-60
Noise level dB(A):
65

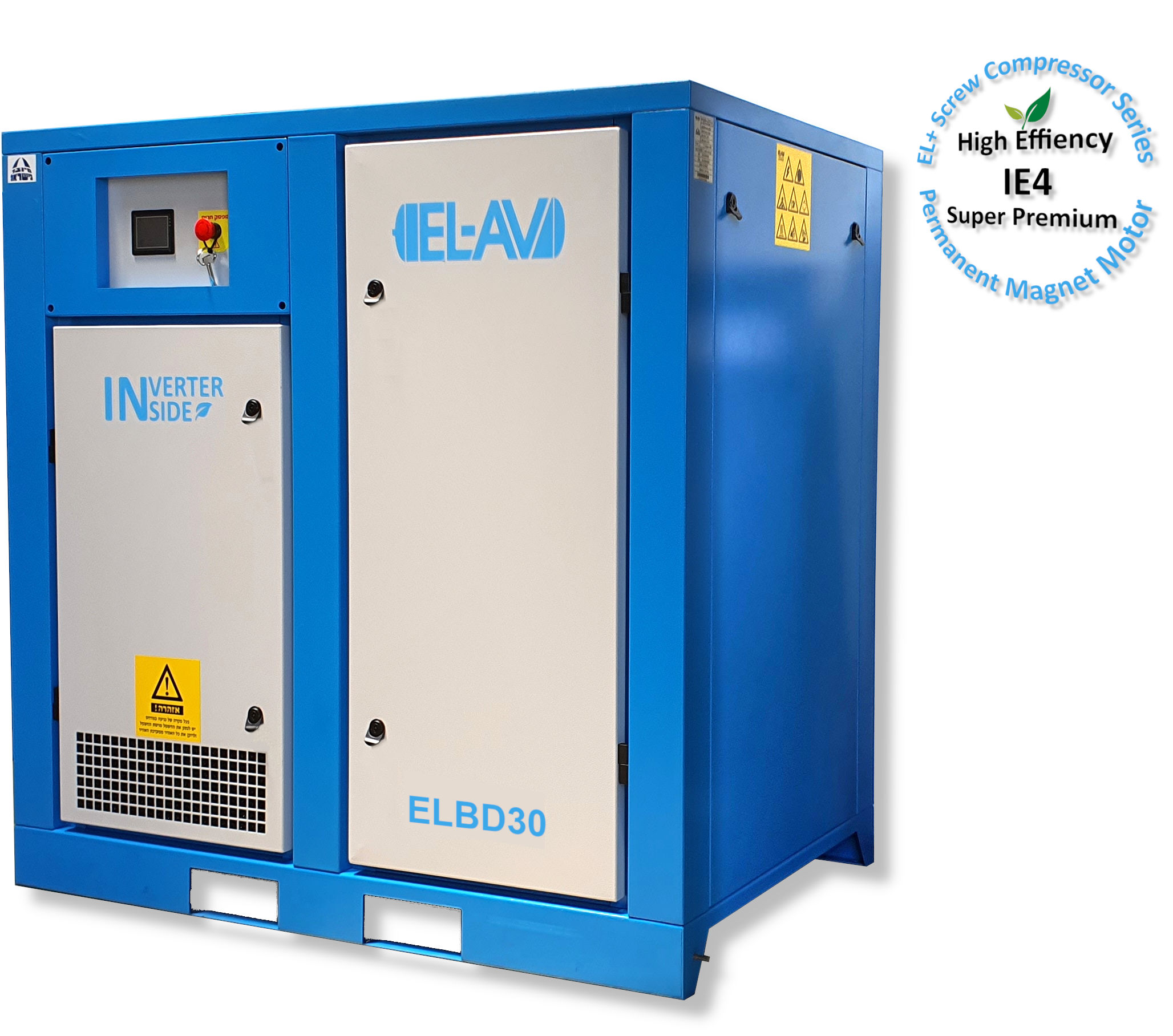

EL+ Series offers you average savings of 50% in electricity consumption. EL+ Series compressors manufactured by EL-AV Compressors employ the most advanced technology in the world of compressed air.
EL-AV Compressors of the EL+ Series adjust the air flow rate with perfect precision to plant air consumption while changing the motor’s rotational speed. The combination of a permanent magnet motor directly connected to the airend, and an inverter controller simultaneously controlling the compression unit and cooling fan enables 50% average savings in energy and overall savings of about 36% total costs over a period of 10 years.
