SEO Meta Title:
ELFD100HP-INV+
Motor power (kw):
75
Motor power (hp):
100
Working pressure (bar):
7-10
Working Pressure (psi):
100-145
Max capacity FAD (l/min):
14900
Min capacity FAD (l/min):
2380
Max capacity FAD (scfm):
522
Min capacity FAD (scfm):
83
Weight (Kg/lbs):
1350 / 2976
Compressed air connections (Inch):
2"
Dimensions LxWxH (mm):
1820x1200x1518
Dimensions LxWxH (Inch):
71.65x47.24x59.76
Power supply V/Ph/Hz:
380-480/3/50-60
Noise level dB(A):
72
EL+ Series offers you average savings of 50% in electricity consumption. EL+ Series compressors manufactured by EL-AV Compressors employ the most advanced technology in the world of compressed air.

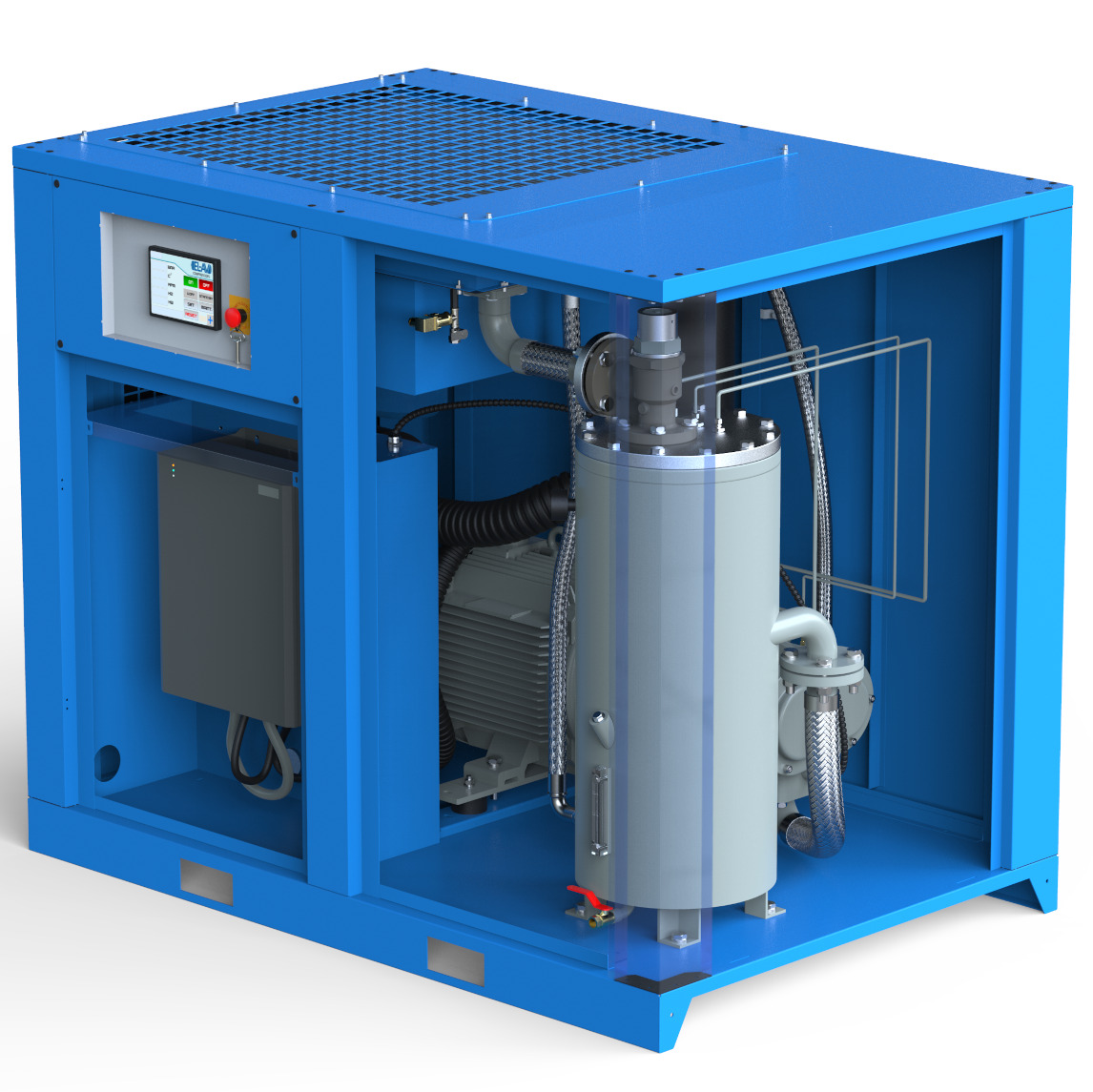

EL-AV Compressors of the EL+ Series adjust the air flow rate with perfect precision to plant air consumption while changing the motor’s rotational speed. The combination of a permanent magnet motor directly connected to the airend, and an inverter controller simultaneously controlling the compression unit and cooling fan enables 50% average savings in energy and overall savings of about 36% total costs over a period of 10 years.
