+ELFD75HPINV

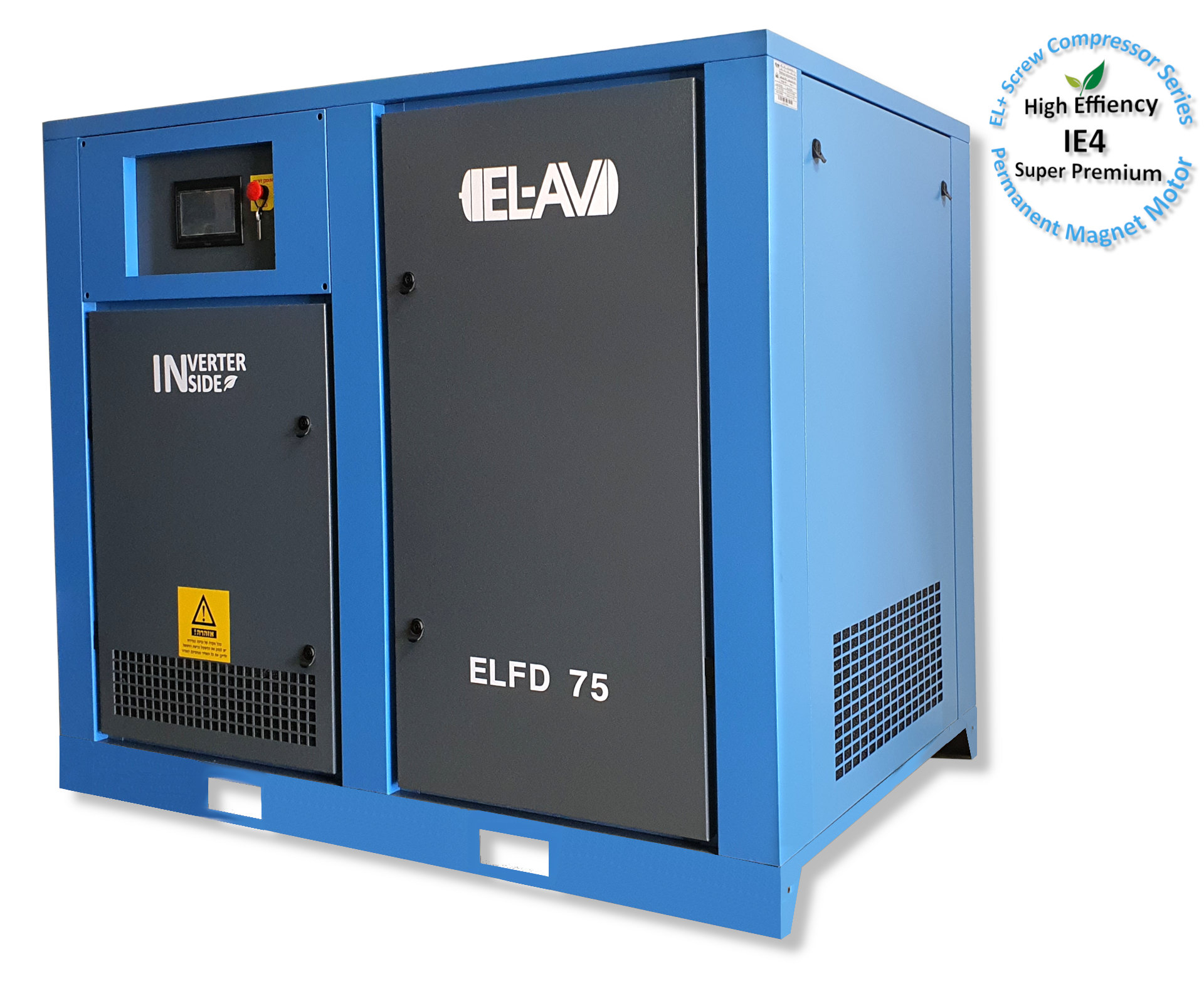

SEO Meta Title: ELFD75HP-INV+
Motor power (kw): 55
Motor power (hp): 75
Working pressure (bar): 7-10
Working Pressure (psi): 100-145
Max capacity FAD (l/min): 10900
Min capacity FAD (l/min): 1880
Max capacity FAD (scfm): 382
Min capacity FAD (scfm): 66
Weight (Kg/lbs): 1120 / 1499
Compressed air connections (Inch): 2"
Dimensions LxWxH (mm): 1820x1200x1518
Dimensions LxWxH (Inch): 71.65x47.24x59.76
Power supply V/Ph/Hz: 380-480/3/50-60
Noise level dB(A): 68

EL+ Series offers you average savings of 50% in electricity consumption. EL+ Series compressors manufactured by EL-AV Compressors employ the most advanced technology in the world of compressed air.

EL-AV Compressors of the EL+ Series adjust the air flow rate with perfect precision to plant air consumption while changing the motor’s rotational speed.  The combination of a permanent magnet motor directly connected to the airend, and an inverter controller simultaneously controlling the compression unit and cooling fan enables 50% average savings in energy and overall savings of about 36% total costs over a period of 10 years.
