Upgrading a South Florida Logistics Hub with EL-AV 50 HP VSD Compressor

Upgrading a South Florida Logistics Hub with EL-AV 50 HP VSD Compressor

This case study details how EL-AV Compressors upgraded a South Florida logistics facility's compressed air system by replacing an undersized 30 HP fixed-speed unit with a 50 HP EL+ Series Variable Speed Drive (VSD) rotary screw compressor. Initially contacting EL-AV for routine maintenance on their existing 30 HP unit, the logistics facility operated two fixed-speed rotary screw compressors (30 HP and 40 HP) that failed to reliably meet airflow demand. An EL-AV service technician identified the capacity deficit during servicing and recommended upgrading to the 50 HP EL+ Series VSD compressor powered by a Permanent Magnet (PM) motor, an ELRD Series high-efficiency refrigerant air dryer, and EF Series inline filters equipped with smart float condensate drains. Installed and commissioned within a few days, the new architecture establishes the 50 HP VSD unit as the primary compressor while keeping the existing 40 HP unit as a backup. This upgrade addressed compressed air pressure drops, elevated air purity standards, and delivered high energy efficiency under South Florida's demanding climate conditions.

Initial Evaluation: Identifying Compressed Air Bottlenecks in South Florida

Operating a large-scale distribution and logistics hub in South Florida presents unique operational challenges. High ambient temperatures and humidity levels place thermal stress on industrial equipment, while shifting packaging, sorting, and material handling workloads demand dynamic compressed air output. The facility originally relied on two fixed-speed rotary screw compressors—a 30 HP unit and a 40 HP unit. While this setup provided basic air generation, it lacked the flexibility and volumetric capacity needed for growing distribution lines.

From Routine Service to Strategic System Assessment

The client originally reached out to EL-AV Compressors' service division to perform standard scheduled maintenance on their 30 HP fixed-speed rotary screw compressor. During the routine service call, an experienced EL-AV field service technician conducted an operational assessment of the air system under active plant loads. The technician observed that the 30 HP unit was operating continuously at full capacity without fulfilling the facility's instantaneous CFM demands, leading to pressure drops across downstream sorting lines and forcing the secondary 40 HP compressor to kick in inefficiently.

Running multiple fixed-speed compressors simultaneously under partial load creates energy losses through frequent unload cycles and artificial demand. Seeing that the existing 30 HP machine was undersized for the client's operations, EL-AV proposed a system upgrade tailored to high-efficiency, variable-demand distribution operations.

The EL-AV Engineering Solution: 50 HP EL+ Series VSD Upgrade

To deliver immediate capacity expansion while reducing electrical overhead, EL-AV recommended replacing the 30 HP fixed-speed compressor with an EL-AV 50 HP EL+ Series VSD Rotary Screw Compressor. The EL+ Series represents EL-AV's energy-efficient design, engineered for continuous industrial applications.

Permanent Magnet (PM) Motor & Variable Speed Technology

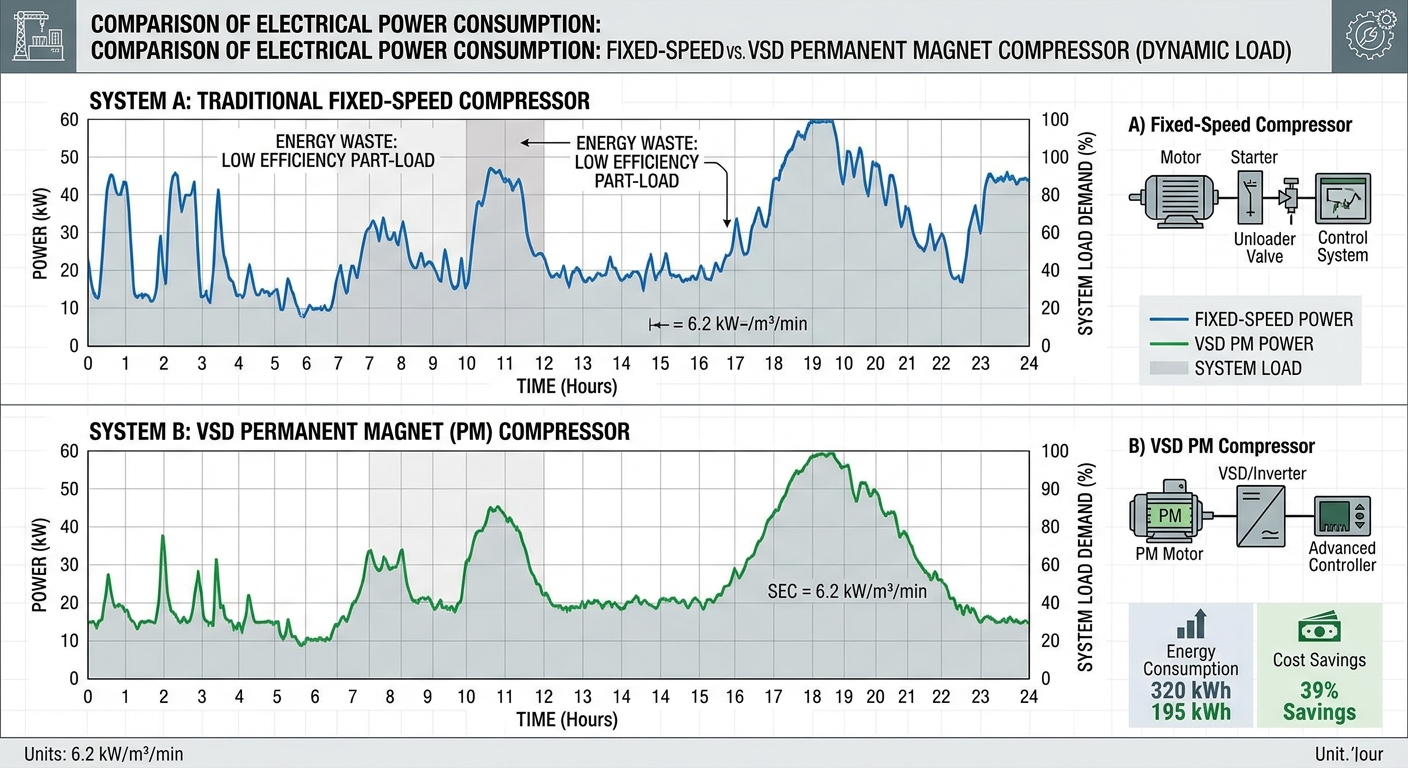

At the core of the 50 HP EL+ Series compressor is an oil-cooled Permanent Magnet (PM) motor paired with a Variable Speed Drive (VSD) inverter system. Unlike traditional fixed-speed motors that run at constant full RPM regardless of actual air consumption, the EL+ VSD system matches motor speed to real-time plant air demand:

• High Energy Efficiency: By modulating shaft speed down to fractional loads, the PM motor eliminates wasteful unloader cycling and idle energy draw, significantly reducing energy consumption compared to standard fixed-speed units.
• High Output & Premium Durability: The Permanent Magnet motor operates with high efficiency, offering lower operating temperatures, reduced bearing wear, and thermal resistance—vital for South Florida climate conditions.
• Smooth Soft-Starting: The VSD inverter eliminates high electrical inrush currents during startup, reducing peak demand spikes on the facility's power supply and reducing mechanical stress on the airend drive train.

Air Treatment for Extreme Ambient Conditions: ELRD Dryer & EF Filters

Expanding compressor horsepower without addressing moisture management in South Florida's humid climate risks line corrosion, tool malfunction, and inventory contamination. To support clean, dry compressed air across packaging zones, EL-AV integrated an air treatment package alongside the new compressor:

• ELRD Series High-Efficiency Refrigerant Air Dryer: Engineered for high-ambient operating environments, the ELRD dryer maintains stable low dew points even when ambient temperatures rise, effectively removing bulk moisture and water vapor from the discharged air stream.
• EF Series Inline Line Filters with Smart Float Drains: Precision EF filters remove particulate matter and micro-oil aerosols to maintain air purity. The inclusion of smart float-operated condensate drains ensures automatic water evacuation without wasting compressed air, preserving pressure volume.

System Architecture & Seamless Installation

A critical requirement for any active logistics hub is minimizing operational downtime during equipment upgrades. EL-AV's technical team coordinated rapid equipment delivery and installation, executing the complete transition within days of final authorization.

Dual-Unit Strategy: Lead VSD with 40 HP Backup

The upgraded system architecture strategically repositions the facility's air assets for high reliability and lifecycle management:

• Primary Lead Unit (EL-AV 50 HP EL+ VSD): Handles base and peak operating air requirements, dynamically adjusting speed to cover demand shifts throughout daily shipping cycles.
• Secondary Backup Unit (Existing 40 HP Fixed-Speed): Integrated into the air manifold as a standby backup. Should plant expansion require extra surge capacity, or during scheduled maintenance on the lead unit, the 40 HP unit can be brought online, supporting high operational availability.

Rapid Turnaround and Turnkey Commissioning

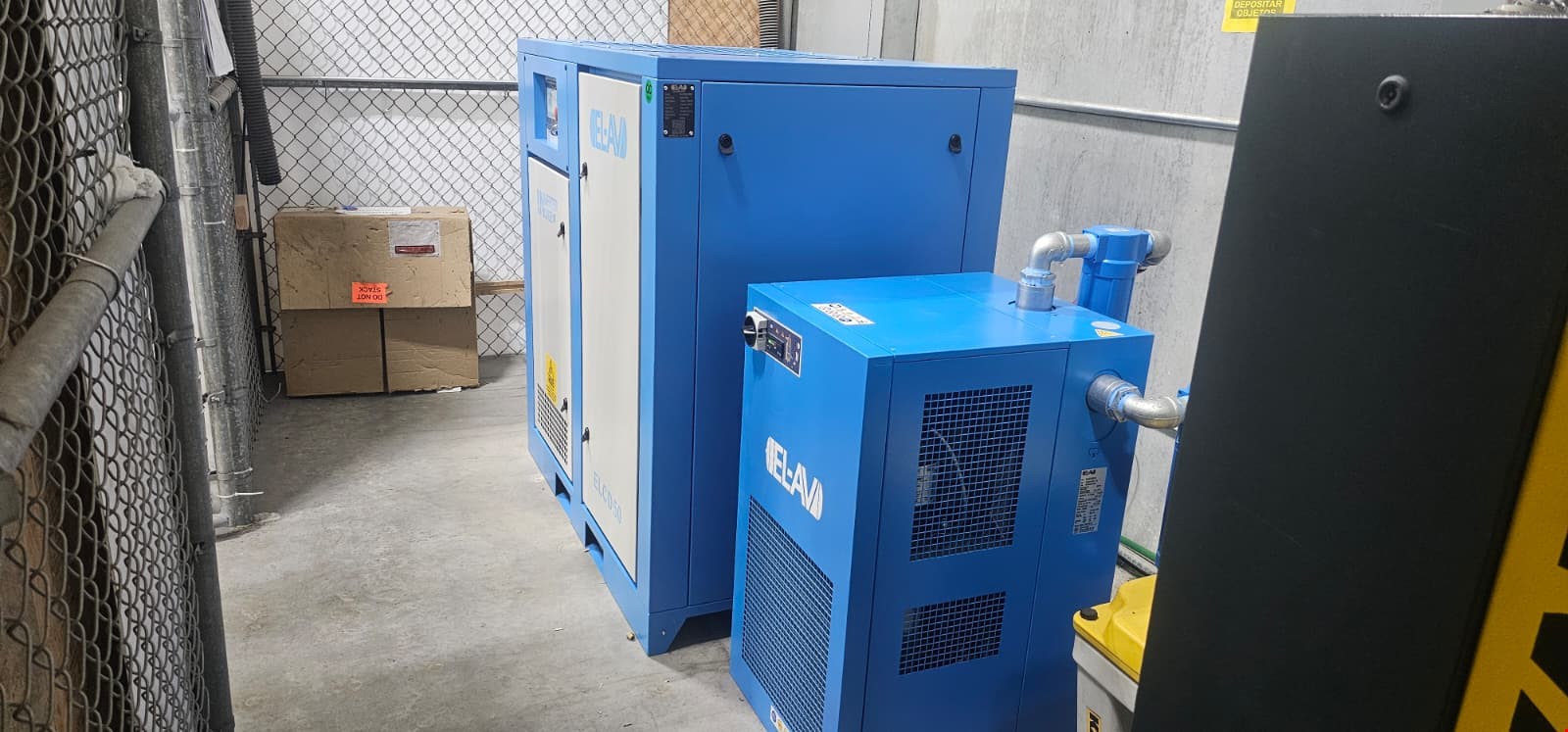

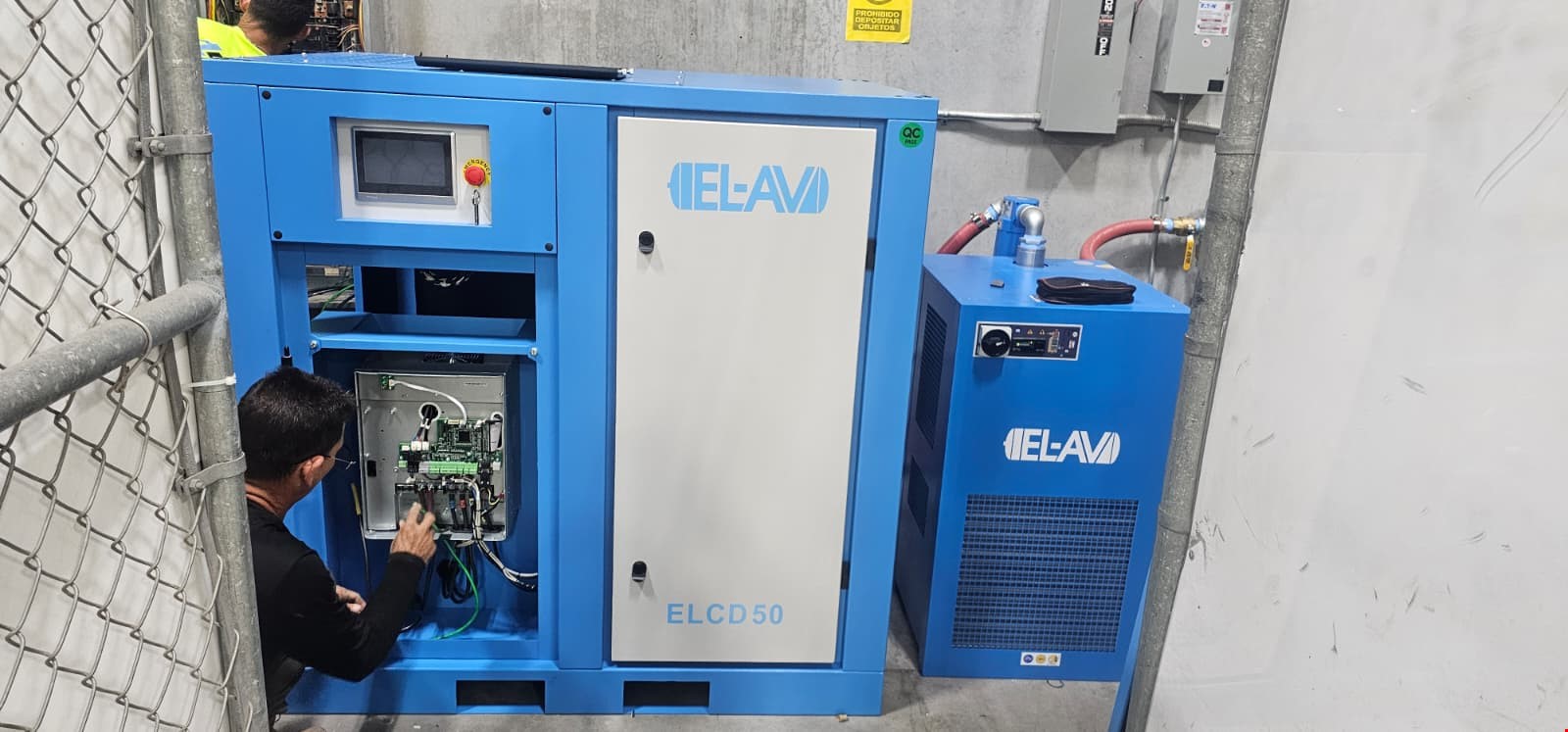

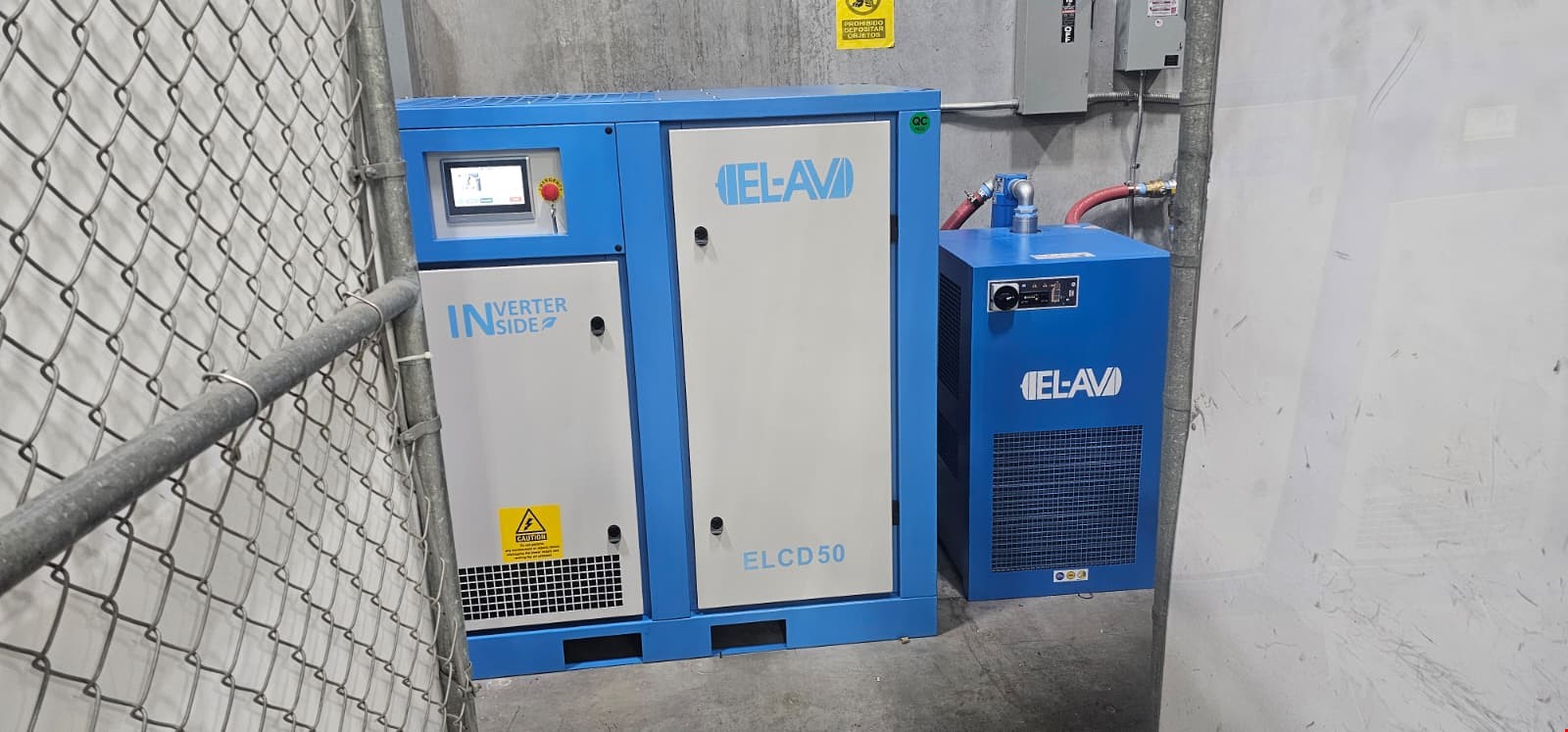

EL-AV's service team managed the mechanical and electrical integration, connecting the 50 HP EL+ compressor, ELRD dryer, and EF filtration matrix into the facility's main header pipework. Following pressure testing, electrical calibration, and dew-point verification, the system was handed over to plant managers without disrupting facility shipping operations.

Strategic Business Benefits & Operational Outcomes

By shifting from an overloaded fixed-speed setup to EL-AV's VSD PM technology, the South Florida logistics center realized operational and financial advantages:

• Resolved System Pressure Drops: The 50 HP capacity easily satisfies peak pneumatic sorting demands, maintaining stable line pressure throughout the facility.
• Substantial Utility Savings: The combination of a Permanent Magnet motor, VSD regulation, and smart float drains reduces kilowatt-hour (kWh) consumption per CFM generated.
• Enhanced Product Purity & Equipment Protection: Dry, oil-filtered air protects pneumatic actuators, automated packaging machinery, and shipped goods from moisture damage.
• Operational Redundancy: Retaining the 40 HP unit provides backup coverage, ensuring production continues even during scheduled maintenance.

Through proactive field service diagnostics, engineering expertise, and rapid turnaround, EL-AV Compressors transformed a routine service call into an energy and performance upgrade for a major South Florida logistics hub.

FAQ

Why did the South Florida logistics center decide to replace its 30 HP compressor?

During a routine maintenance visit, an EL-AV field service technician identified that the existing 30 HP fixed-speed compressor was insufficient for the facility's peak airflow demands, leading to pressure drops in downstream sorting lines.

What equipment was included in the EL-AV system upgrade?

The upgrade featured an EL-AV 50 HP EL+ Series VSD rotary screw compressor with a Permanent Magnet motor, an ELRD Series high-efficiency refrigerant air dryer, and EF Series inline line filters equipped with smart float condensate drains.

How was the existing 40 HP compressor integrated into the new architecture?

The existing 40 HP fixed-speed compressor was retained as a secondary standby backup unit to maintain operational redundancy and support continuity during scheduled maintenance.
