A Full-Scale Turnkey Compressed Air Ecosystem for a High-Tech Manufacturing Leader
Global Partnership, Local Excellence
Location: Florida, USA (Supporting Global Operations)
Industry: Technical Adhesive Solutions & Precision Fabrication
The Solution: Comprehensive EL+ Series System – From Generation to Distribution
The Client: A Global Standard of Quality
Our client is an international leader in precision die-cutting and adhesive technology, serving demanding sectors such as medical, aerospace, and electronics. Having already established a successful partnership with EL-AV Compressors in Israel, they trusted us to spearhead the infrastructure for their Florida-based expansion.
The Challenge: Beyond Just a Compressor
High-precision fabrication requires more than just "air", it requires a stable, ultra-clean environment. The client needed a complete facility setup that could:
1. Maximize Efficiency: Lowering operational costs through advanced motor technology.
2. Ensure Purity: Removing all moisture and particulates to protect sensitive adhesive materials.
3. Seamless Installation: A professional, leak-free piping loop with room for future growth.
The Solution: A Fully Integrated "Air Ecosystem"
We designed and managed the implementation of a comprehensive system, featuring:

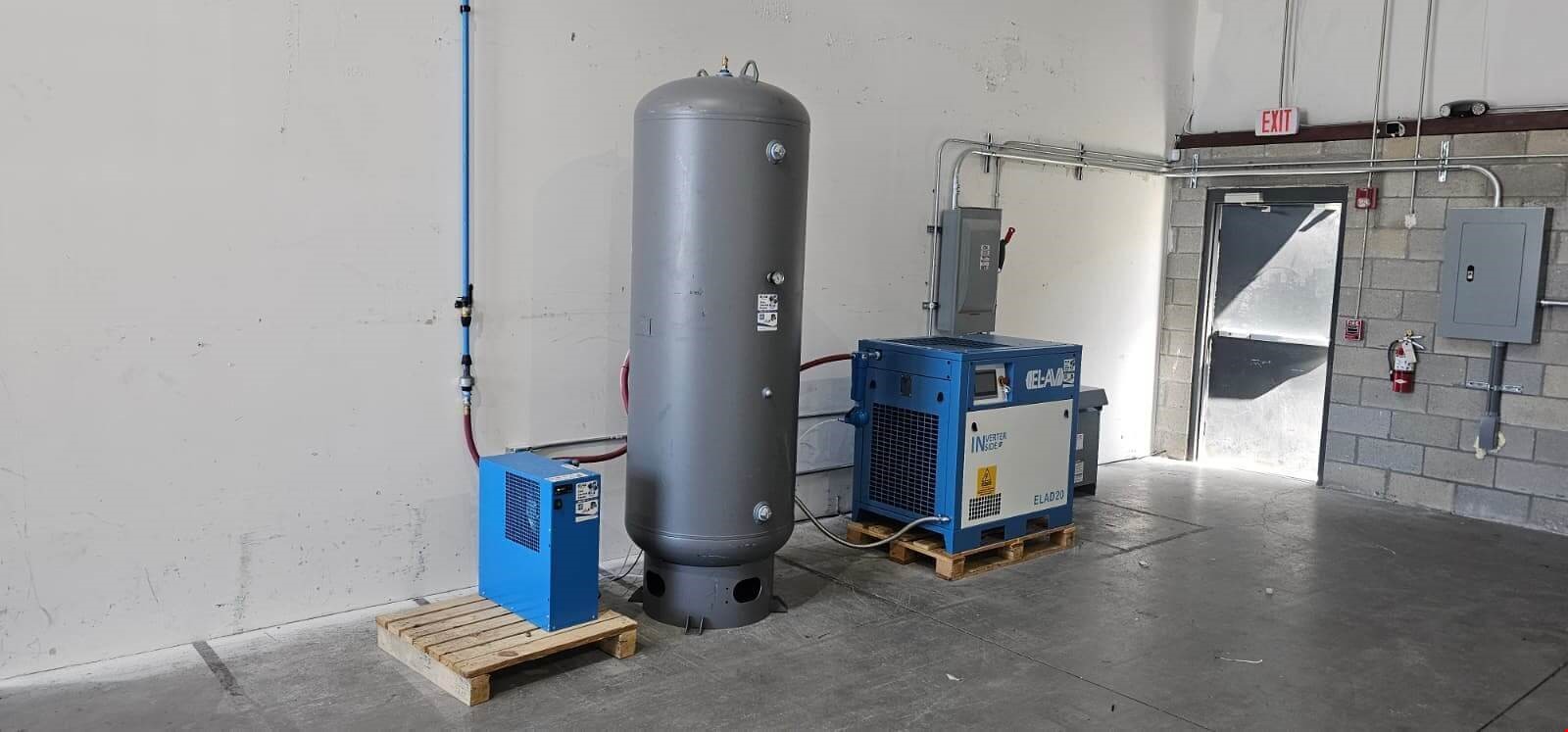

1. Generation: The EL+ 20HP PM VFD Rotary Screw Compressor. Featuring Permanent Magnet technology and Variable Frequency Drive, it matches output exactly to demand for maximum energy savings.
2. Treatment & Purity: Cyclone Water Separator and an ELRD Series Refrigerated Dryer (100 SCFM) to eliminate moisture.
- Pre-Filtration: An EF Series 0.1-micron filter equipped with a mechanical float condensate drain to capture and discharge bulk liquids before the air enters the dryer.
- Fine Filtration: An EF Series 0.01-micron filter for final polishing of the air stream.
3. Storage & Management: A 240-gallon vertical air receiver equipped with an electric timer condensate drain for reliable, automated moisture discharge from the tank.
4. Power Integration: A custom 30kVA Transformer to bridge regional electrical requirements (208/480V).
Project Management & Professional Installation
EL-AV Compressors didn't just deliver equipment, we engineered the facility's air infrastructure. Our scope of work included:

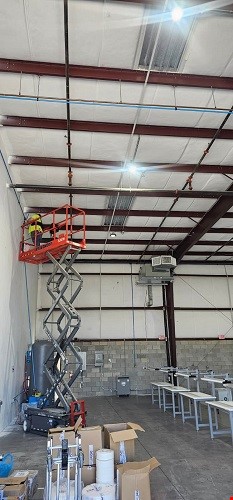

- Precision Piping: Installation of a leveled "Loop" system designed for optimal flow and reduced pressure drops.

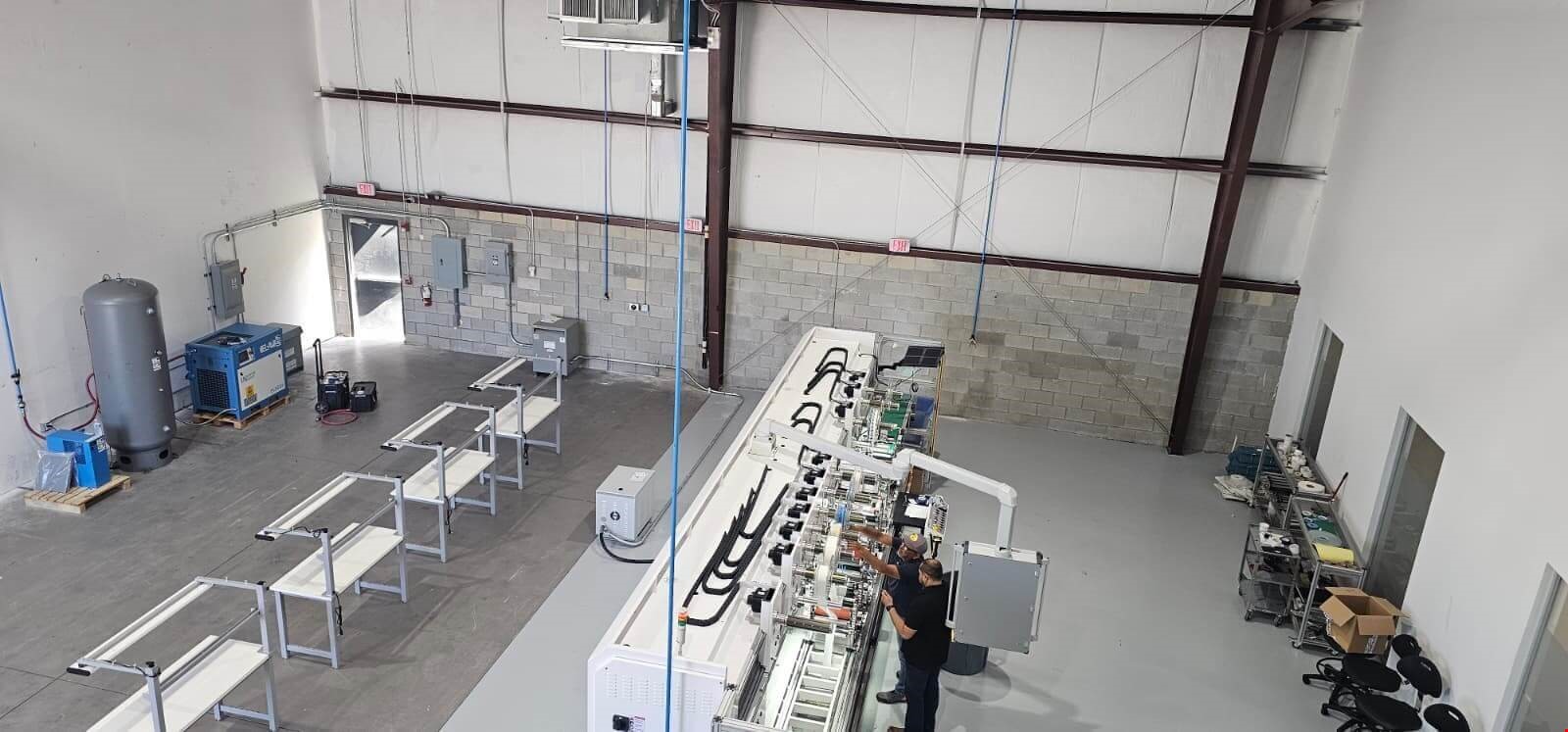

- Strategic Drop Points: Five dedicated wall-mounted drop points for immediate production access, with two additional valves prepared for future expansion.
- Commissioning: A rigorous startup process, including leak detection and functional testing of the dryer and filtration units.
The Result: Reliability at Scale
By choosing EL-AV Compressors as their global partner, the client achieved a seamless transition to their new Florida facility.
- Operational Readiness: The plant went from an empty floor to a fully pressurized, high-tech facility with zero downtime.
- Sustainable ROI: The PM VFD technology ensures energy costs remain optimized as production scales.
- Quality Assurance: The ultra-clean air ensures that the client's adhesive products meet the highest international standards.
